Spare Parts · KSF 4

Every part, precisely placed.

Hover or tap a marker to see what it is. Add anything you need to your enquiry basket, then send it to us in one go. No account, no checkout. If a part isn’t listed, our engineers can usually manufacture it.

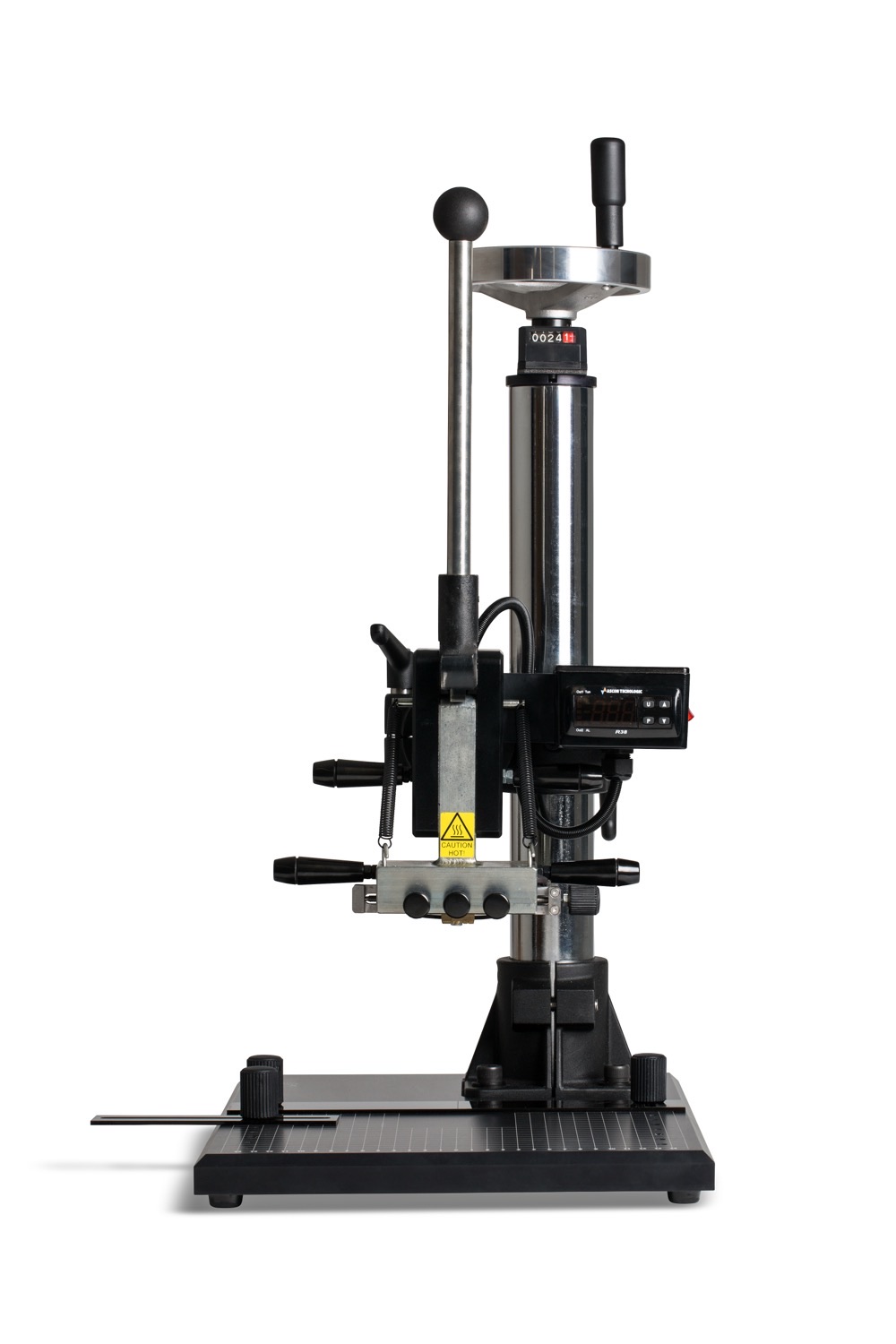

KSF 416 parts
KSF 4
Hover a pin for its name · scroll or pinch to zoom · drag to pan
Parts list

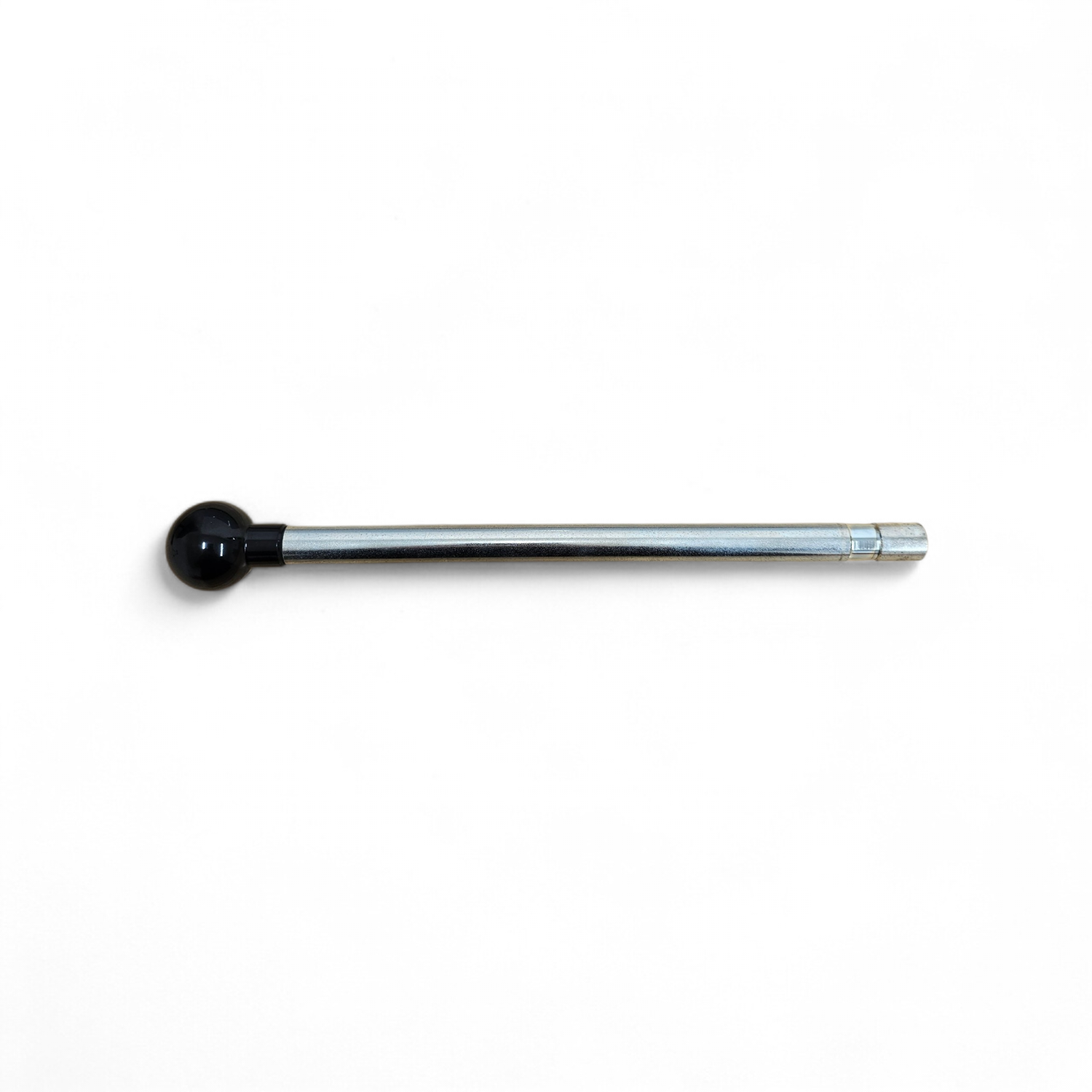

  • 01

    Main Handle

    The lever you pull to bring the heated die down onto the material for each impression.

  • 02

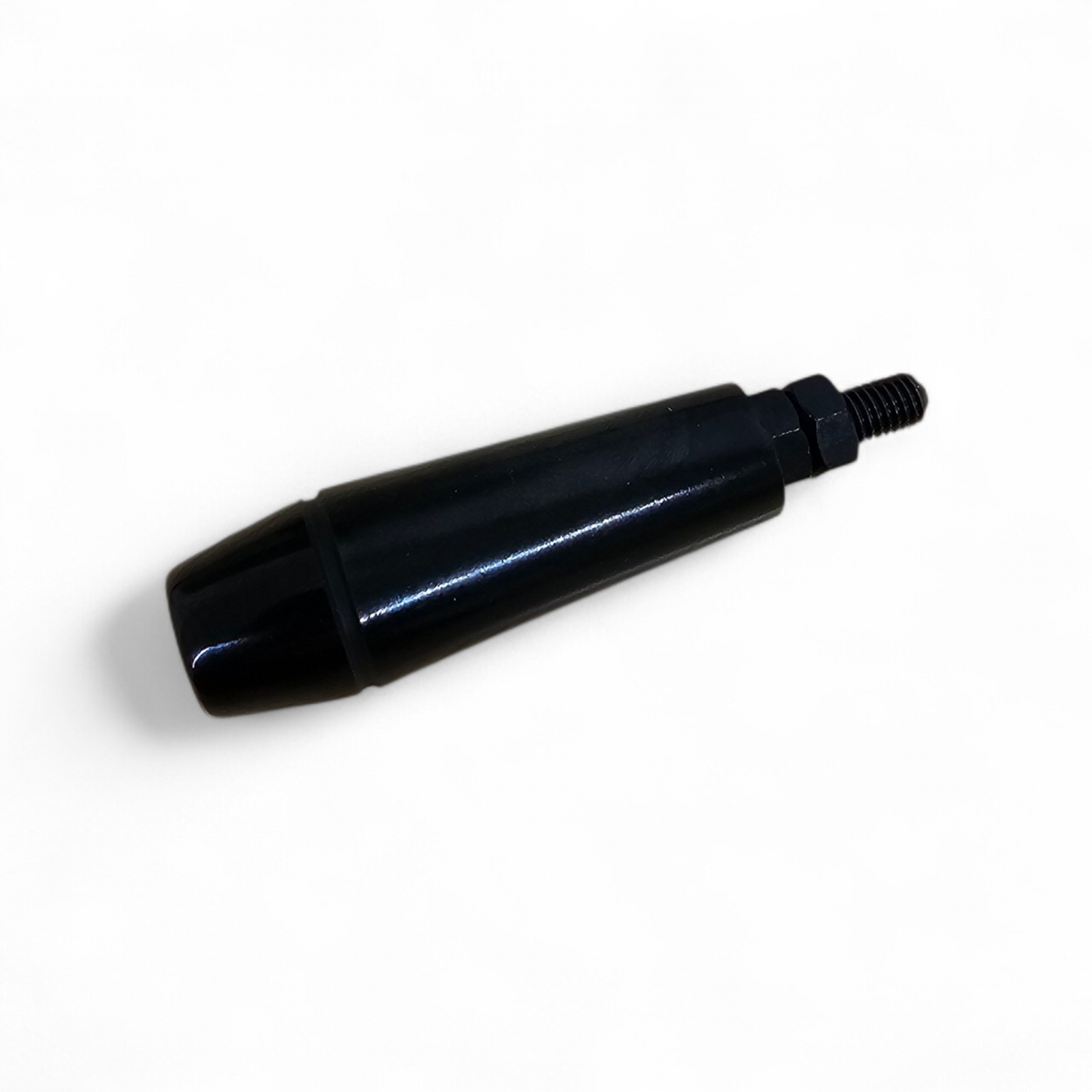

    Heaterbox Handle

    Operates the heater box, giving fine control when loading or adjusting the die.

  • 03

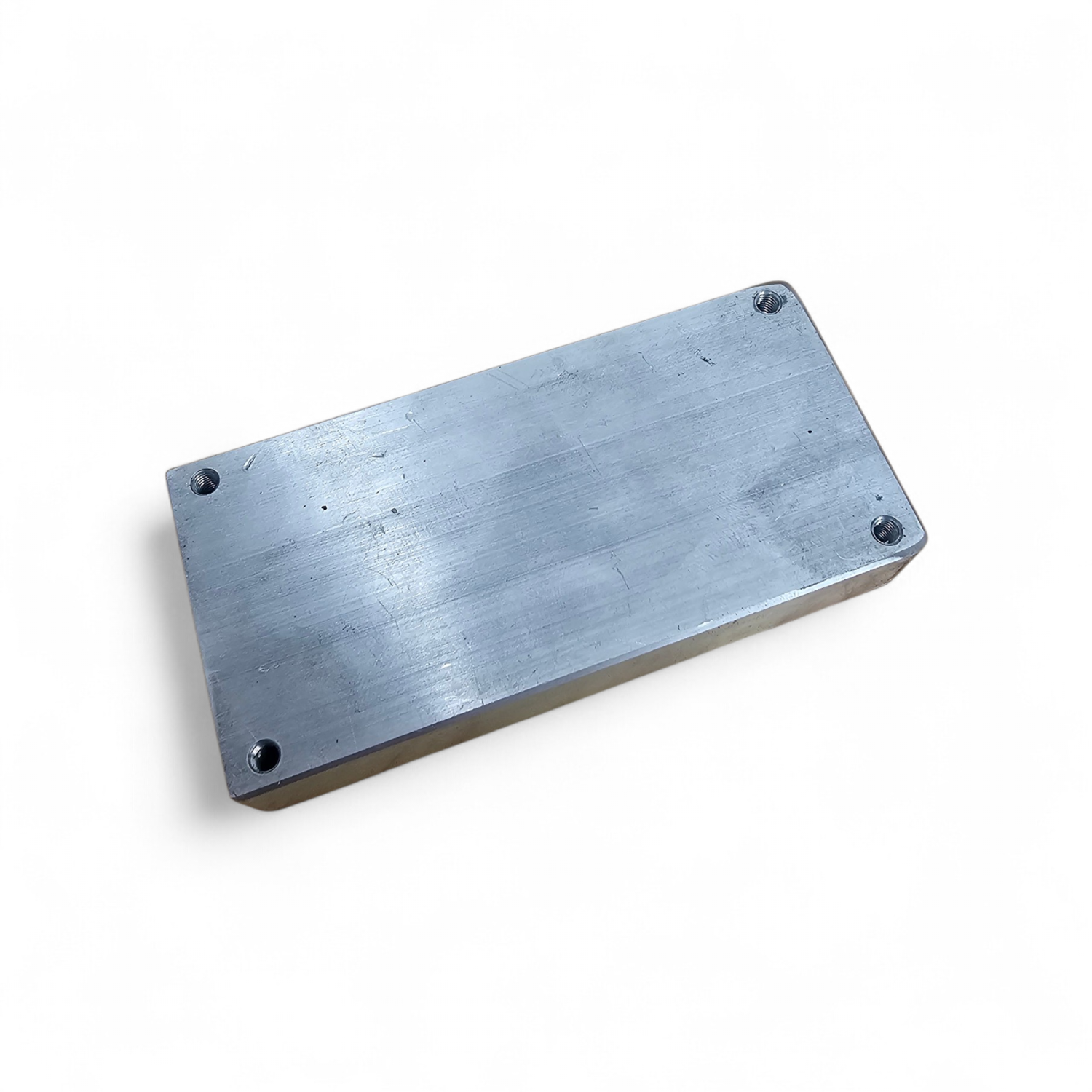

    4" Die Block

    Holds a 4-inch hot foil die securely in the heater box, ready to strike.

  • 04

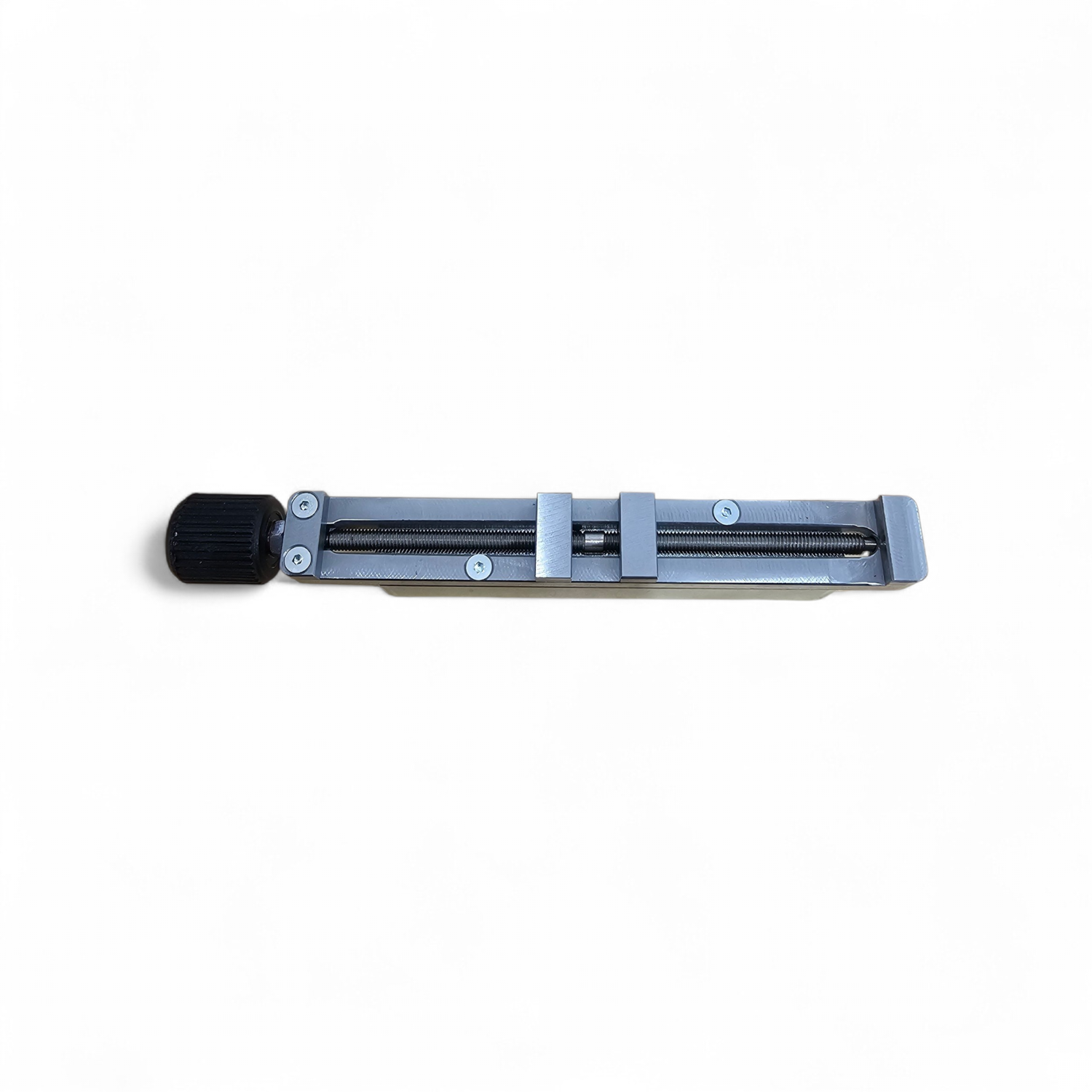

    4" Typeholder

    Adjustable holder that locks 4-inch brass type into place for personalised, one-off stamping runs.

  • 05

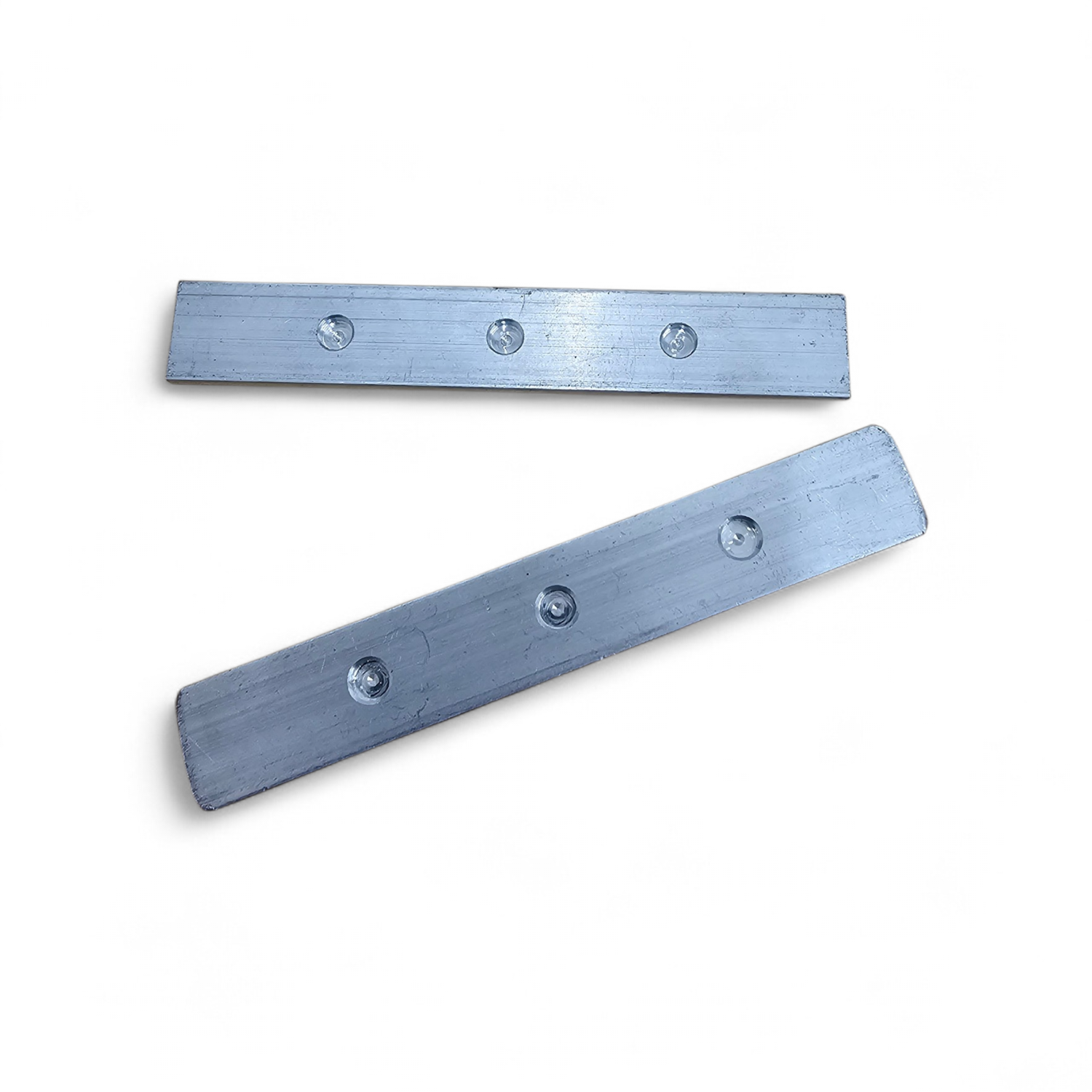

    Furniture

    Spacing bars used to lock up dies and type square in the holder.

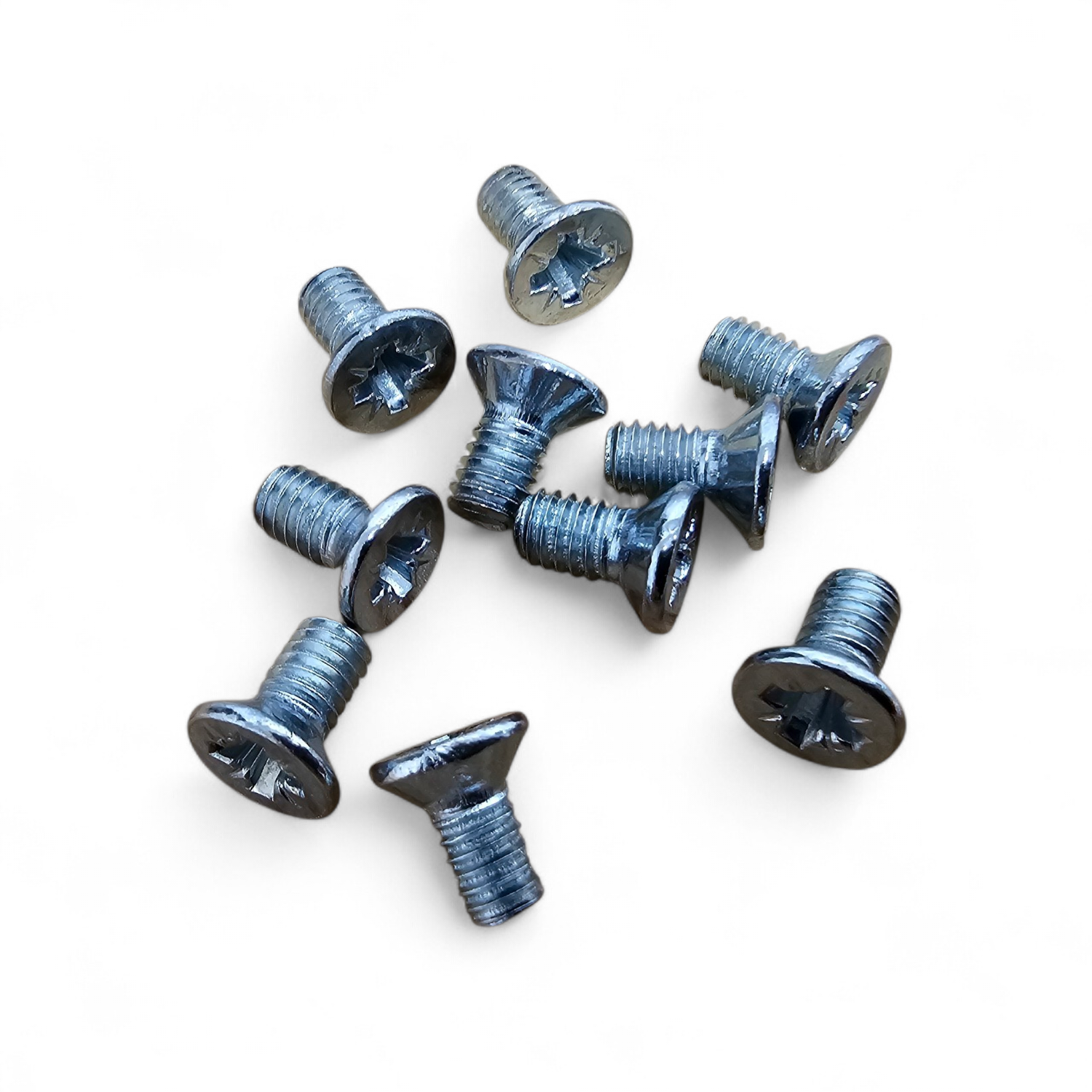

  • 06

    Hot Foil Die Mounting Screws (10)

    Fixes your die to the block. Supplied as a set of ten.

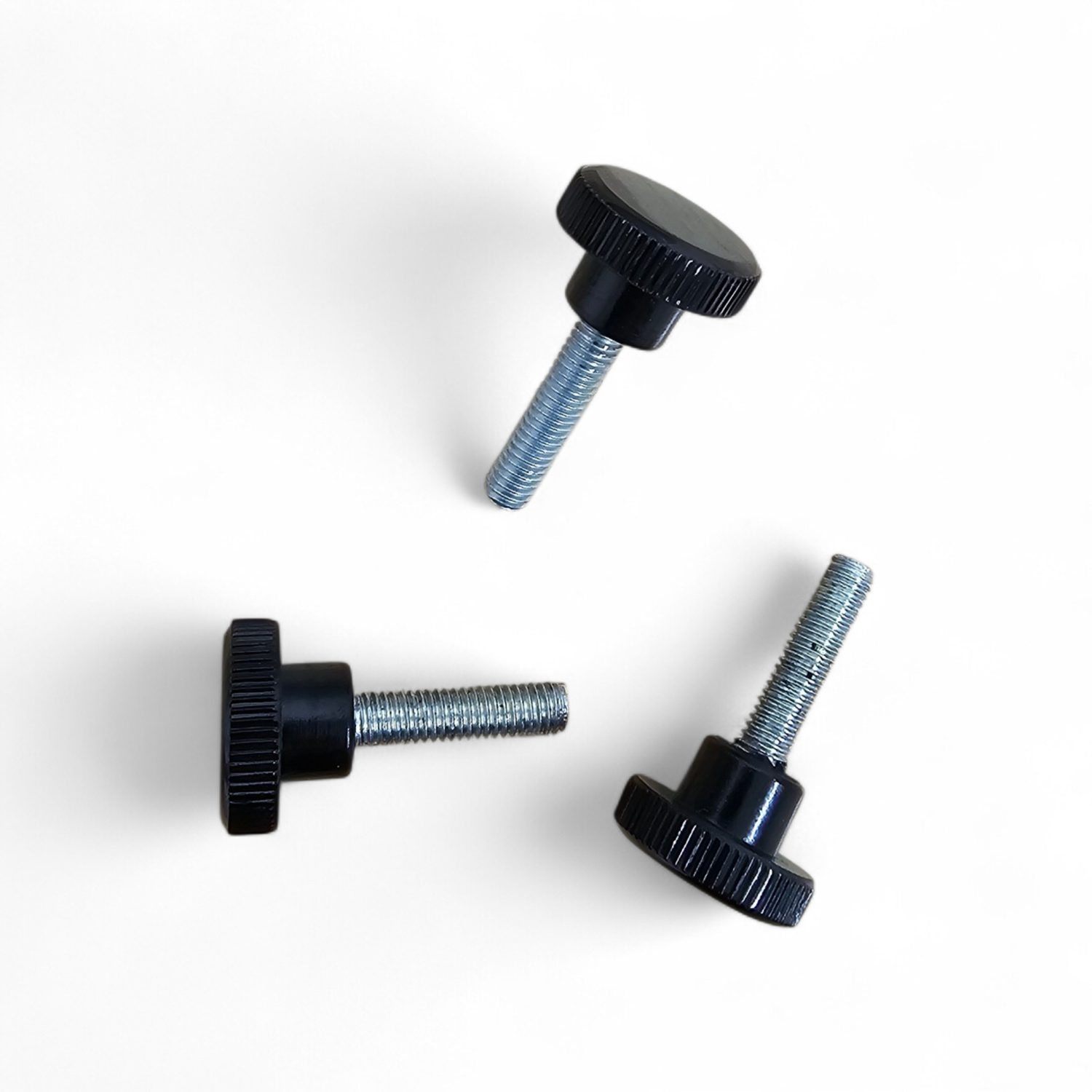

  • 07

    Heater Box Screws (3)

    Secures the heater box housing. Set of three.

  • 08

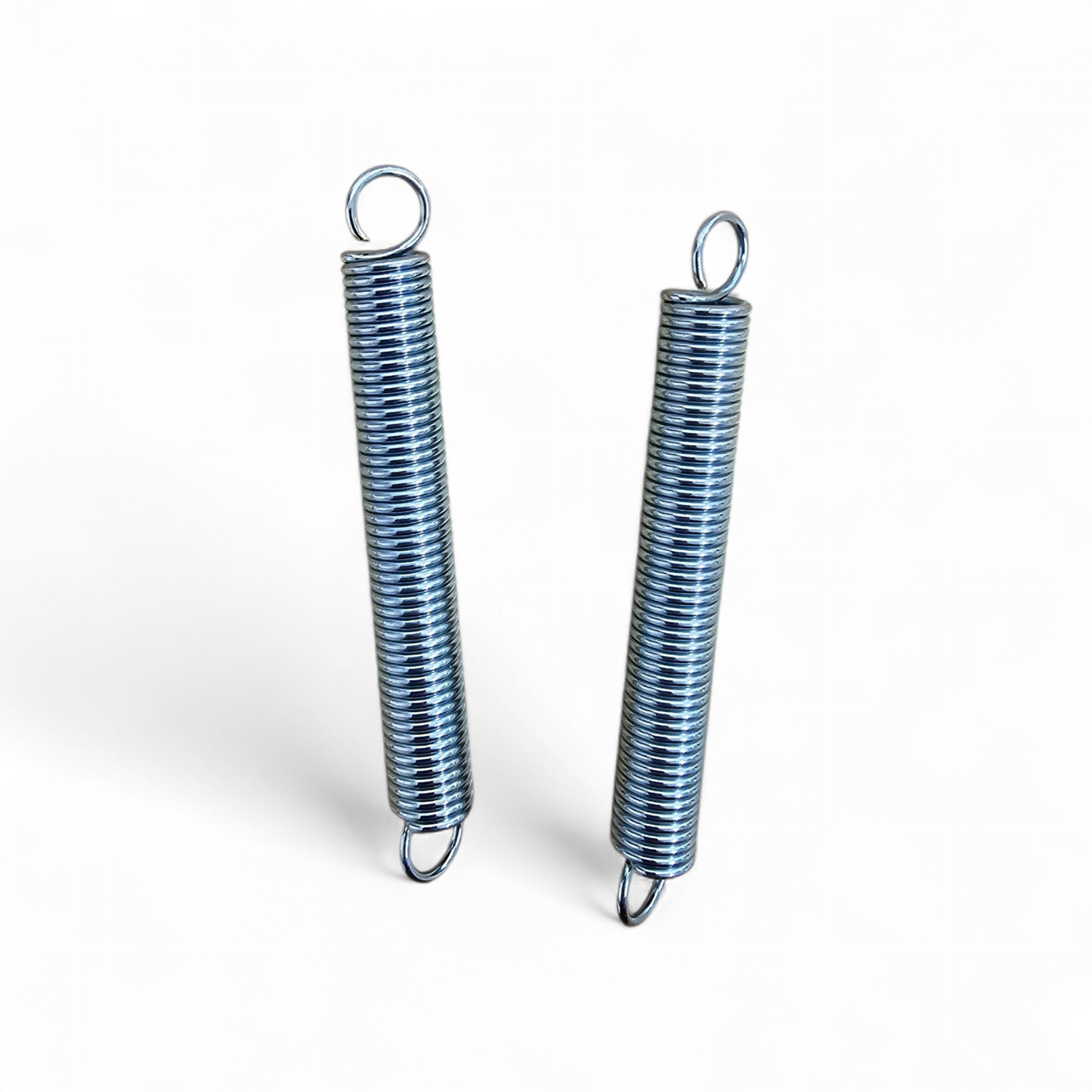

    Head Return Springs

    Pull the heater head back up after every impression, stroke after stroke.

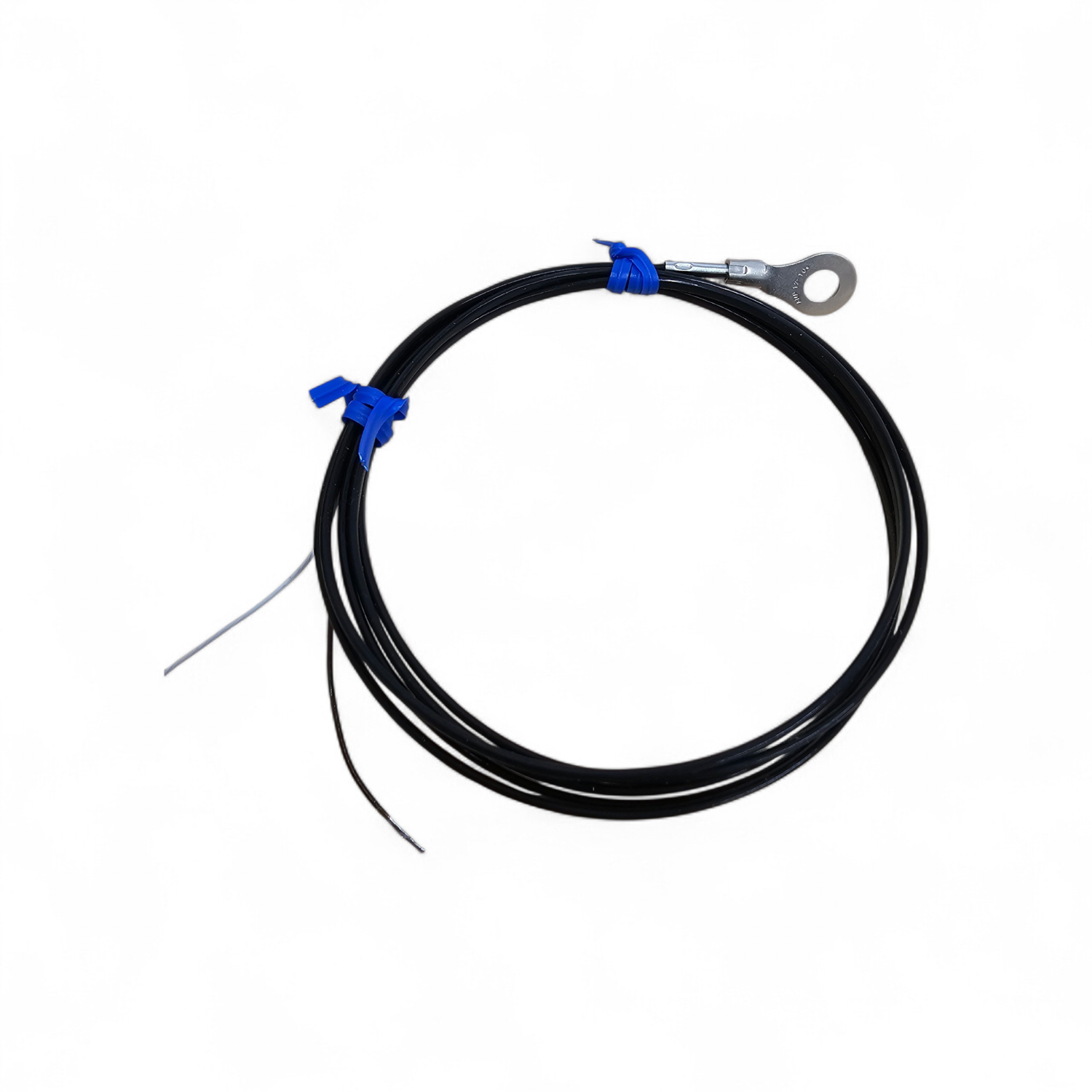

  • 09

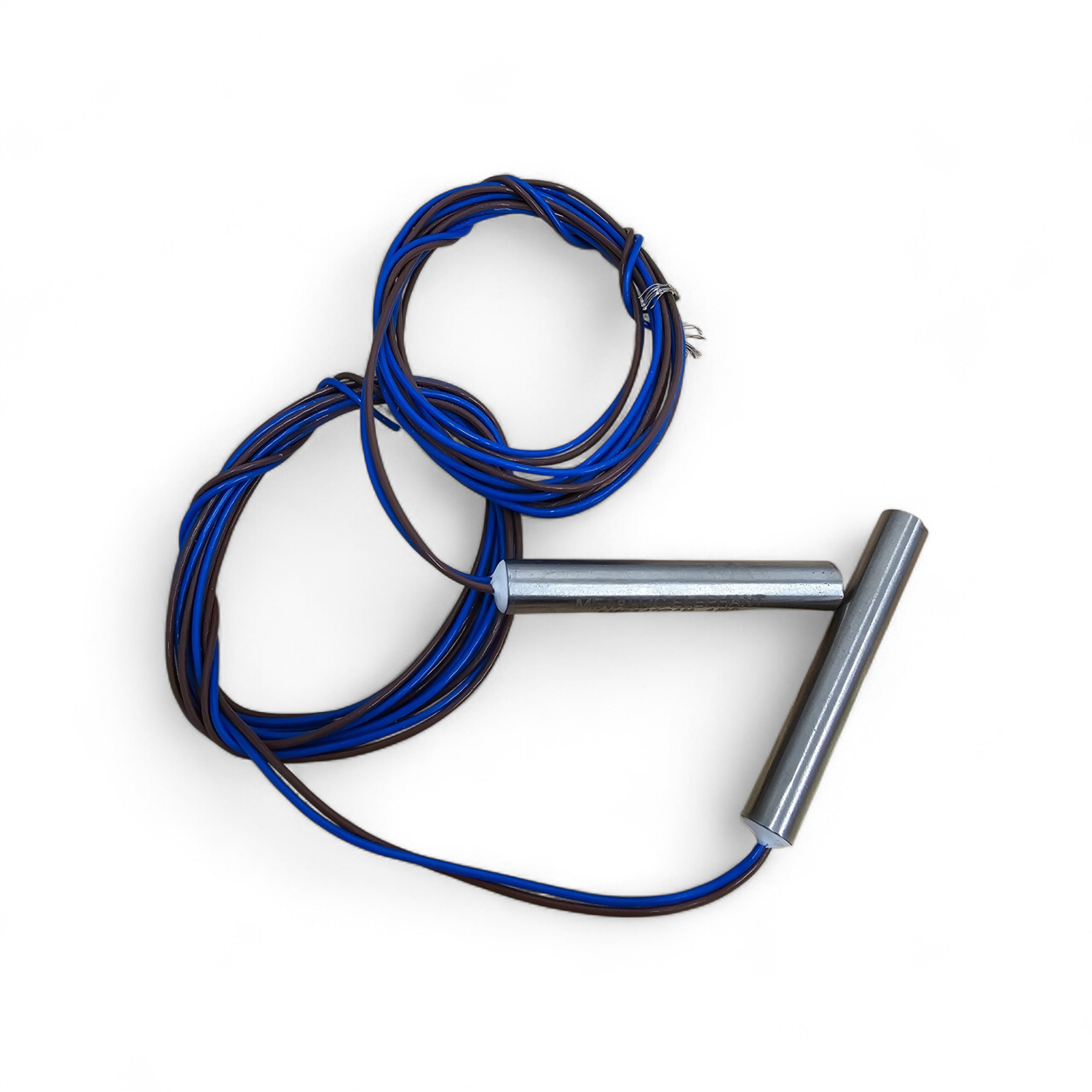

    Wiring Loom (Heaters & Probe)

    Carries power to the heating elements and signal from the temperature probe. Supplied as a pair of heater cartridges plus the probe lead.

  • 10

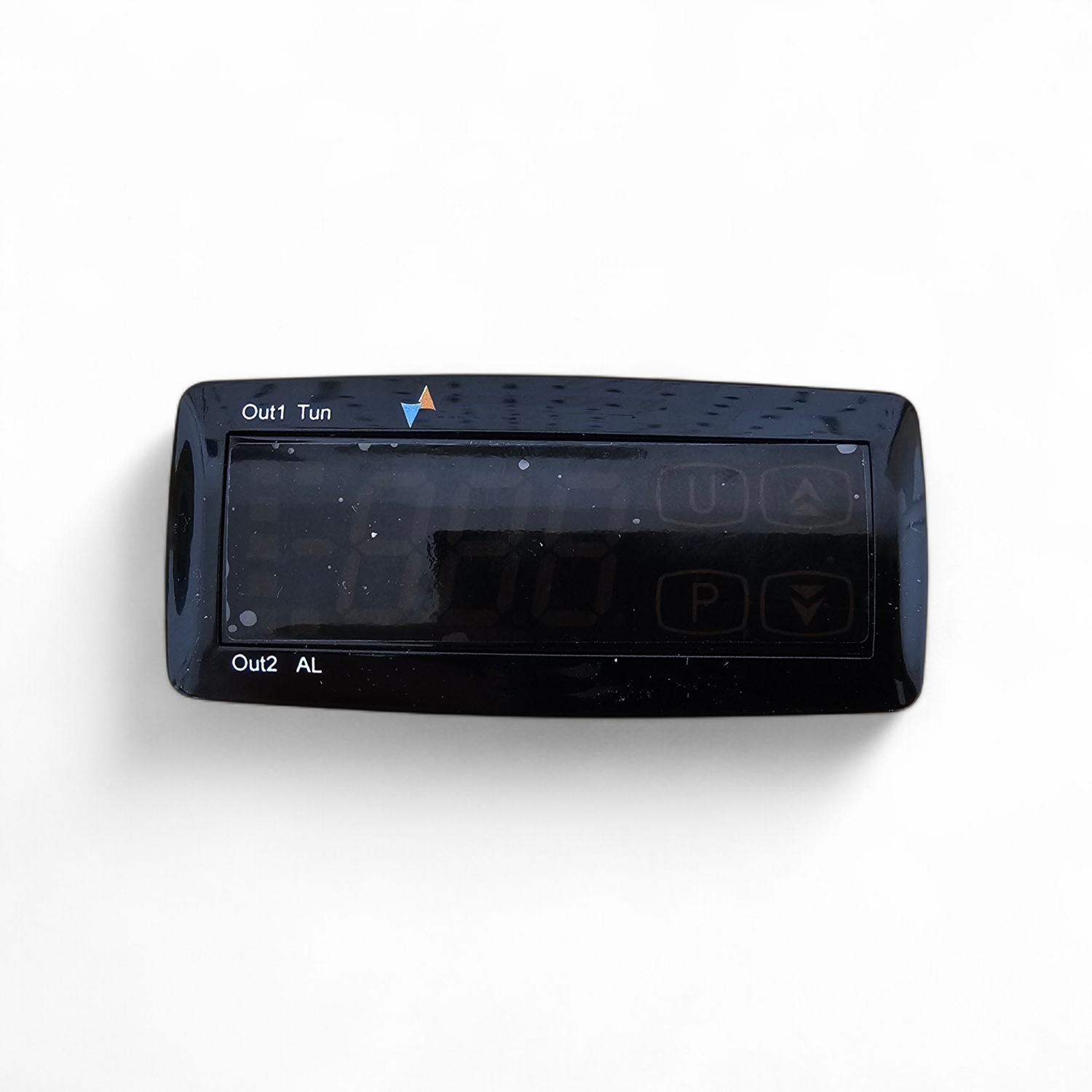

    Temperature Controller

    The Ascon digital controller that keeps your die at a steady stamping temperature.

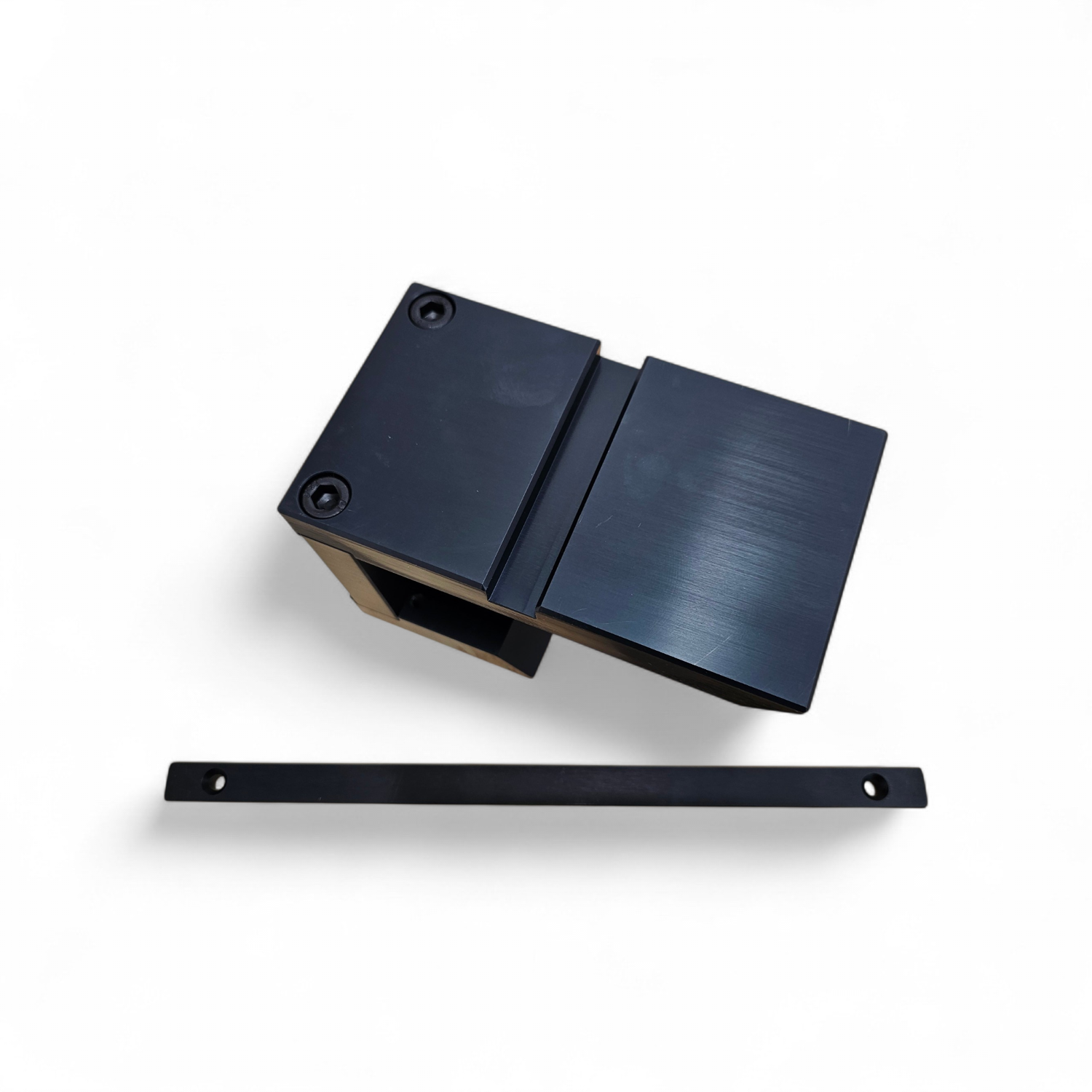

  • 11

    Anvil (including fitting strip)

    The fixed surface your material rests against as the die comes down, supplied with its fitting strip.

  • 12

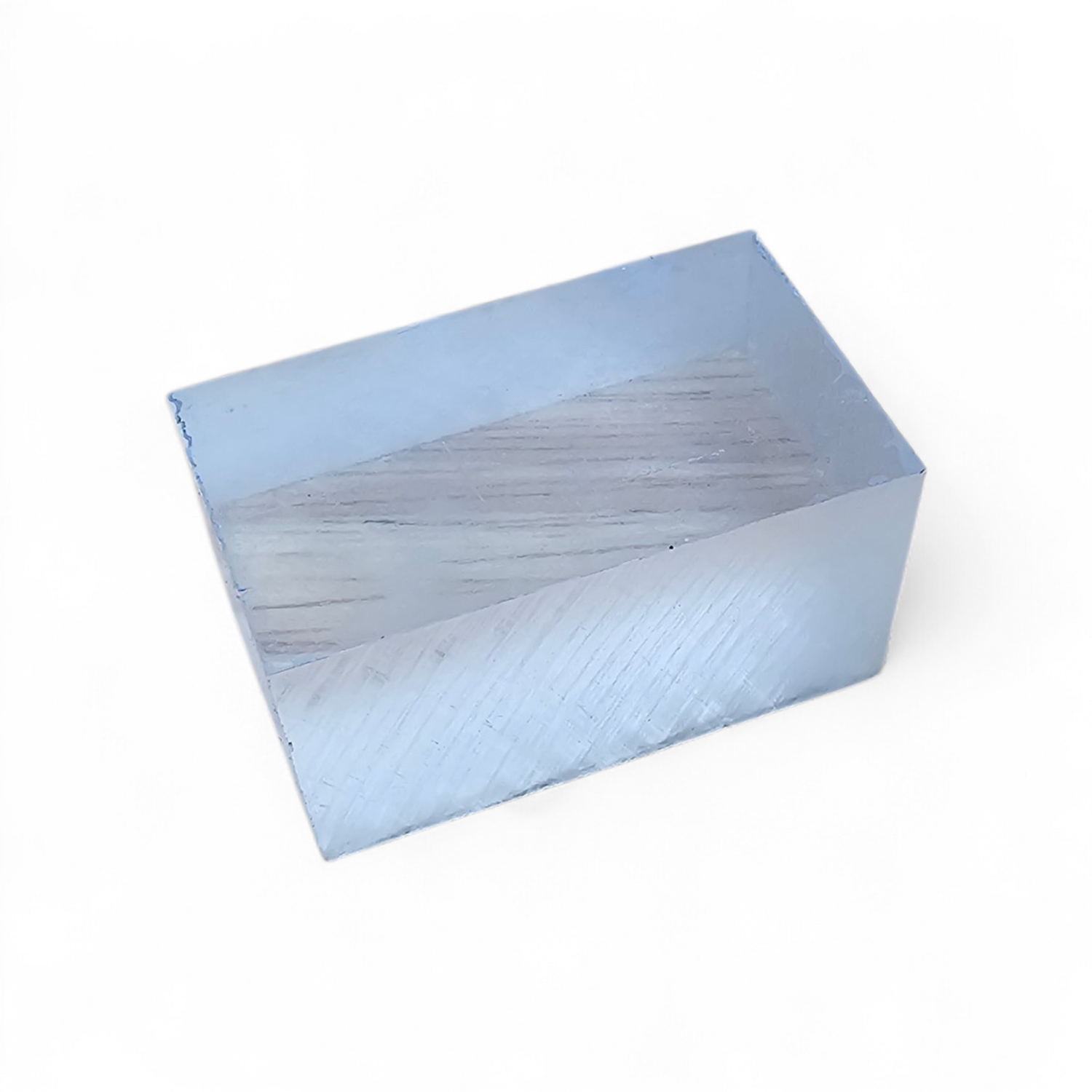

    Clear Set-Up Block

    A see-through block for lining up artwork before you commit to the strike.

  • 13

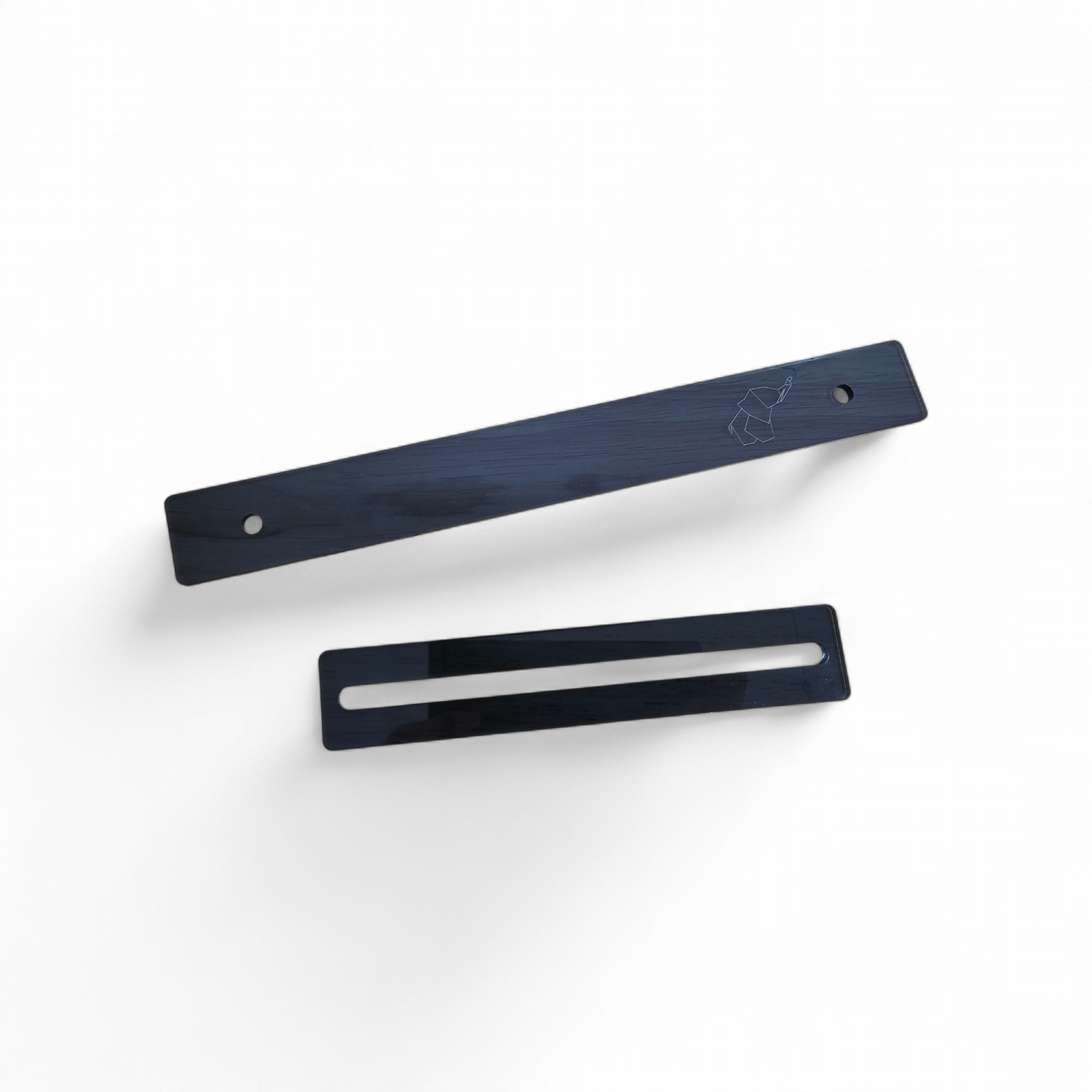

    Table Gauges

    Sliding registration gauges that keep every sheet positioned exactly the same.

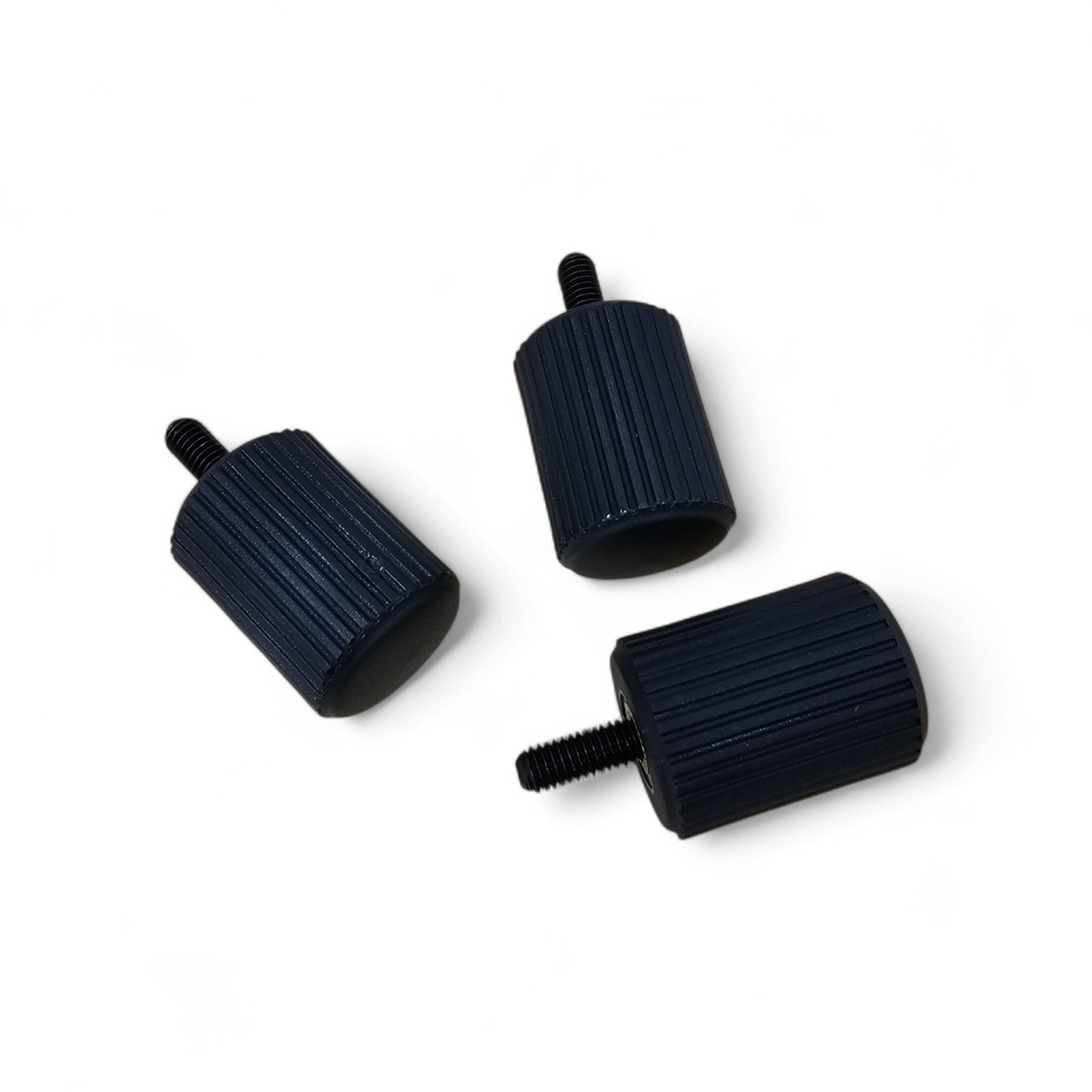

  • 14

    Table Gauge Screws (3)

    Locks the gauges in place once you have set your registration. Set of three.

  • 15

    Table Thumb Screws

    Hand-tightened screws for quick, tool-free table adjustments.

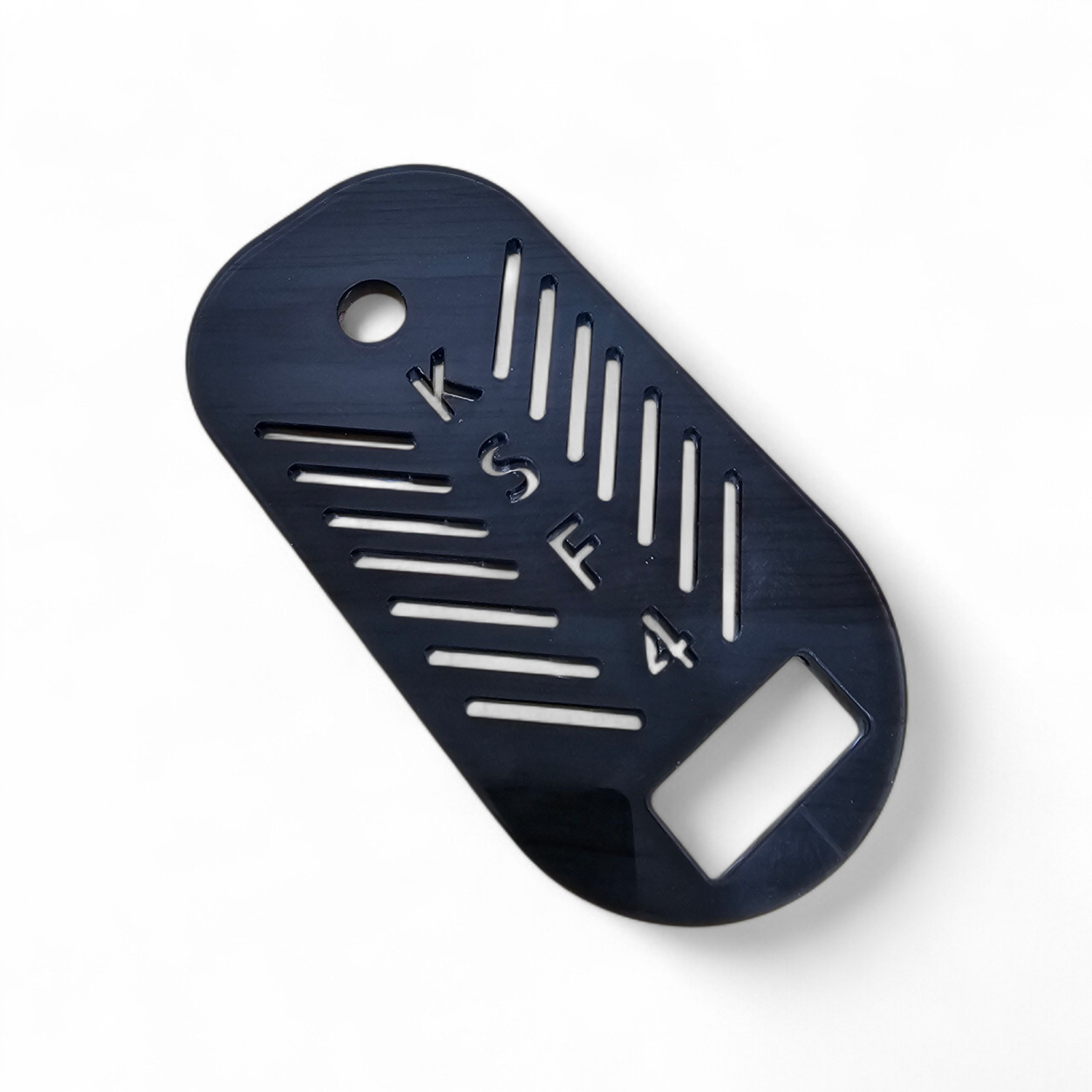

  • 16

    KSF 4 Viewer

    Optional viewing aid for checking die-to-material alignment before you press.
