KSF 4: The KSF 1 and 2 combined, the artisan’s studio companion

Take the portability of the KSF 1, add the reach of the KSF 2, and give the head full XYZ movement. That is the KSF 4. Up to 200 mm of impression clearance at just 24 kg makes it the most adaptable press we build.

Weight24 kg
ImpressionUp to 200 mm
Table325 × 455 mm

Enquire about the KSF 4

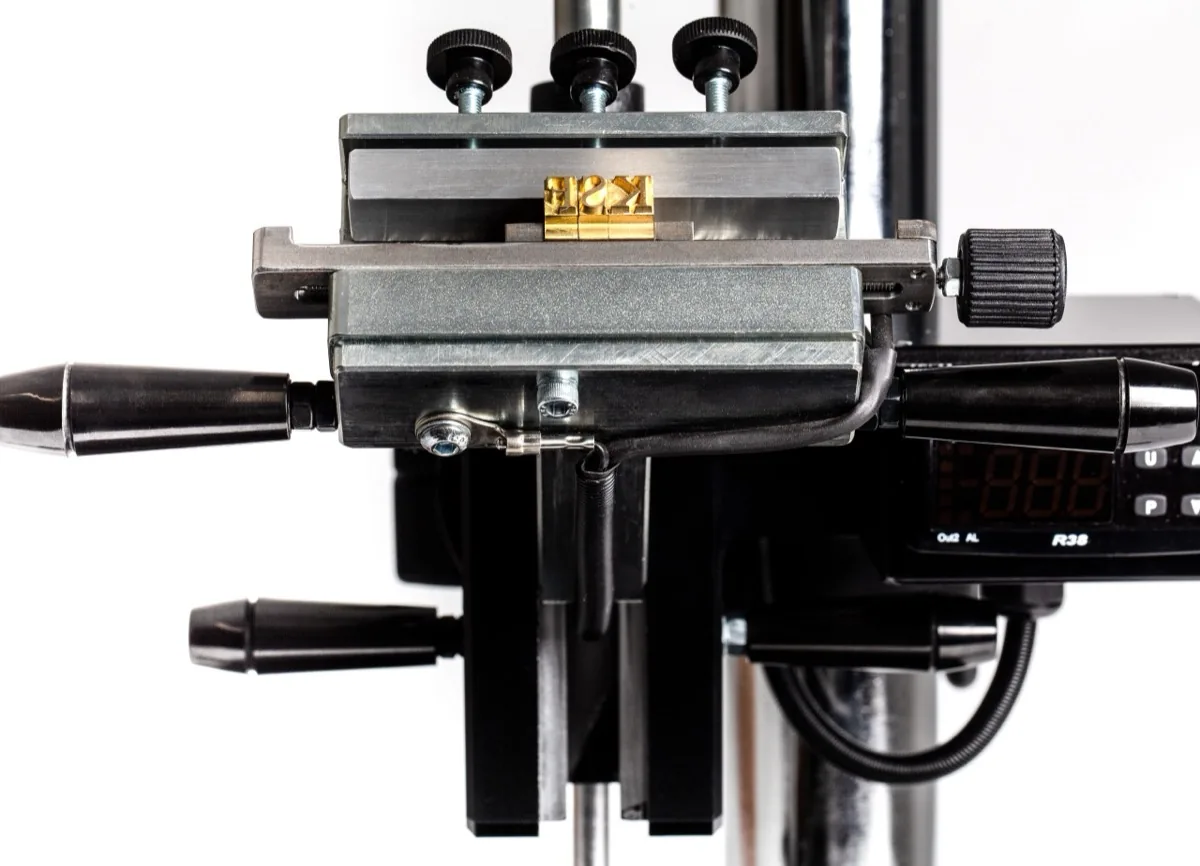

KSF 4 with brass type loaded in the type holder

At the bench

Built for the work, not the brochure

The head glides to the work instead of the work being wrestled to the die. Boxes, bottles, books and bags all sit naturally on the big 325 × 455 mm table while the head is positioned precisely above. Every serviceable part is machined in-house. Browse them below and order spares in one click.

Perfect for

Studios & artisans
Boxed goods
Mixed product lines
Growing makers

Why this machine

What makes the KSF 4 earn its keep

XYZ head movement

Position the die over the product, not the product under the die.

200 mm clearance

Deep boxes and finished goods slide straight under the head.

Just 24 kg

Studio-friendly weight with workshop-grade precision.

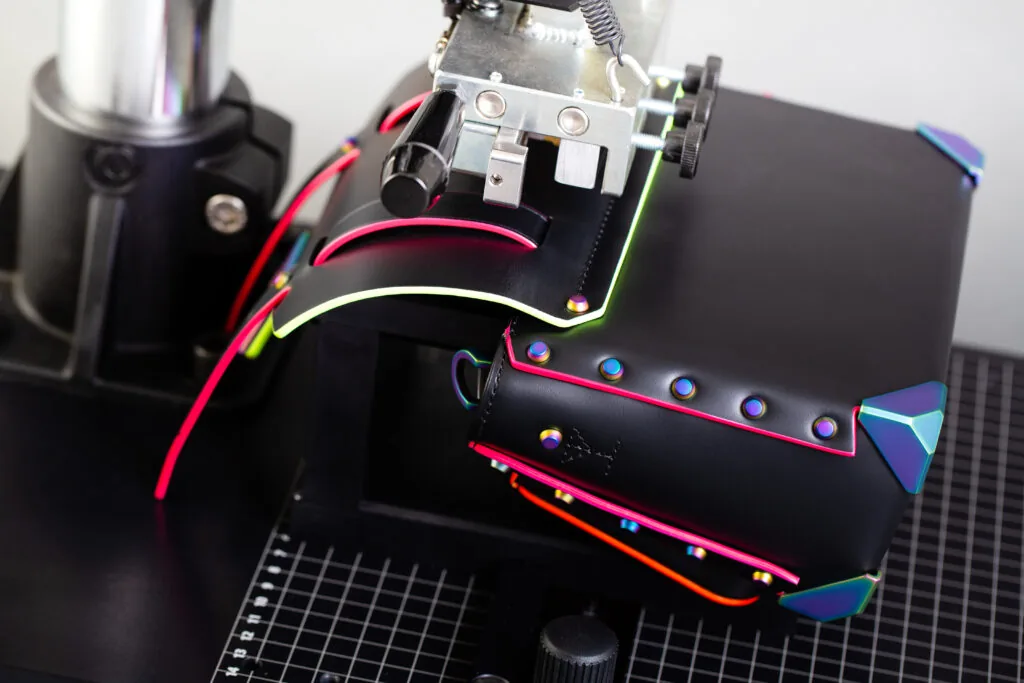

Foiling a black leather bag on the KSF 4

KSF 4 elevation with numbered spare parts

On camera

Watch the KSF 4 at work

The numbers

The KSF 4, by the numbers

Every machine is made to order in Essex. If a dimension doesn't quite fit your product, talk to us before you rule it out. Modifications are what we do.

Type holder: 100 mm, self-centring
Print area: 48 × 100 mm
Table size: 325 × 455 mm
Throat depth: 95 mm to 180 mm
Impression thickness: Up to 200 mm
Machine footprint: 325 × 455 × 745 mm high
Press weight: 24 kg

Spare Parts · KSF 4

Every part, precisely placed.

Hover or tap a marker to see what it is. Add anything you need to your enquiry basket, then send it to us in one go. No account, no checkout. If a part isn’t listed, our engineers can usually manufacture it.

KSF 416 parts

Hover a pin for its name · scroll or pinch to zoom · drag to pan

Parts list

01
Main Handle
The lever you pull to bring the heated die down onto the material for each impression.
02
Heaterbox Handle
Operates the heater box, giving fine control when loading or adjusting the die.
03
4" Die Block
Holds a 4-inch hot foil die securely in the heater box, ready to strike.
04
4" Typeholder
Adjustable holder that locks 4-inch brass type into place for personalised, one-off stamping runs.
05
Furniture
Spacing bars used to lock up dies and type square in the holder.
06
Hot Foil Die Mounting Screws (10)
Fixes your die to the block. Supplied as a set of ten.
07
Heater Box Screws (3)
Secures the heater box housing. Set of three.
08
Head Return Springs
Pull the heater head back up after every impression, stroke after stroke.
09
Wiring Loom (Heaters & Probe)
Carries power to the heating elements and signal from the temperature probe. Supplied as a pair of heater cartridges plus the probe lead.
10
Temperature Controller
The Ascon digital controller that keeps your die at a steady stamping temperature.
11
Anvil (including fitting strip)
The fixed surface your material rests against as the die comes down, supplied with its fitting strip.
12
Clear Set-Up Block
A see-through block for lining up artwork before you commit to the strike.
13
Table Gauges
Sliding registration gauges that keep every sheet positioned exactly the same.
14
Table Gauge Screws (3)
Locks the gauges in place once you have set your registration. Set of three.
15
Table Thumb Screws
Hand-tightened screws for quick, tool-free table adjustments.
16
KSF 4 Viewer
Optional viewing aid for checking die-to-material alignment before you press.
