3 tonnes of pressure
Big dies, deep coverage and dense materials. Struck cleanly every time.
Production, workhorse
KSF 5: The 3-tonne workhorse with auto foil feed
When a studio graduates to sustained production, the KSF 5 is the next machine on the bench: three tonnes of pressure, 240 mm of daylight, a sliding table and automatic foil feed that keeps runs moving.
- Pressure3 tonnes
- Print area200 × 150 mm
- Foil feedAutomatic
At the bench
Built for the work, not the brochure
The auto foil feed advances fresh foil between impressions so the operator can concentrate on loading work, and the sliding table brings the job out to be changed rather than reaching under a hot head. It is hand-built for shifts, not sprints.
Perfect for
- Sustained runs
- Scaling studios
- Packaging & covers
- Dense materials
Why this machine
What makes the KSF 5 earn its keep

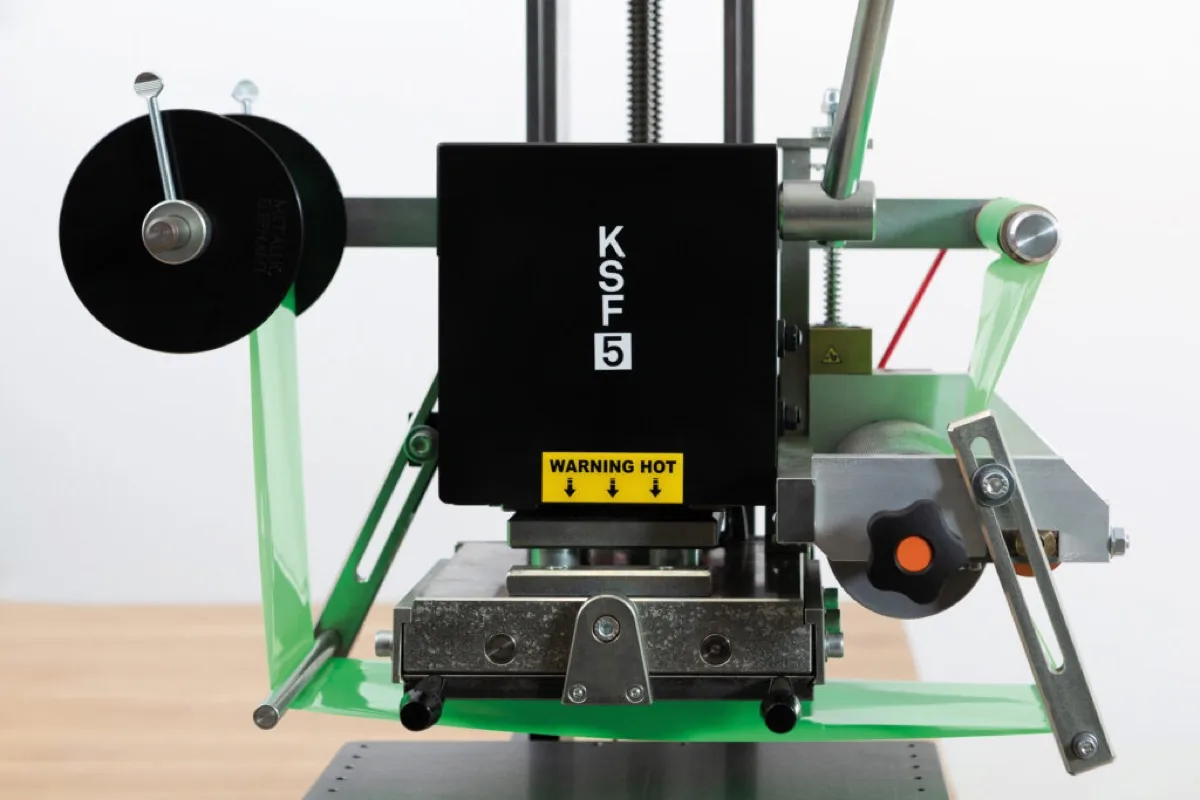

Automatic foil feed
Fresh foil advances between strikes; runs keep their rhythm.

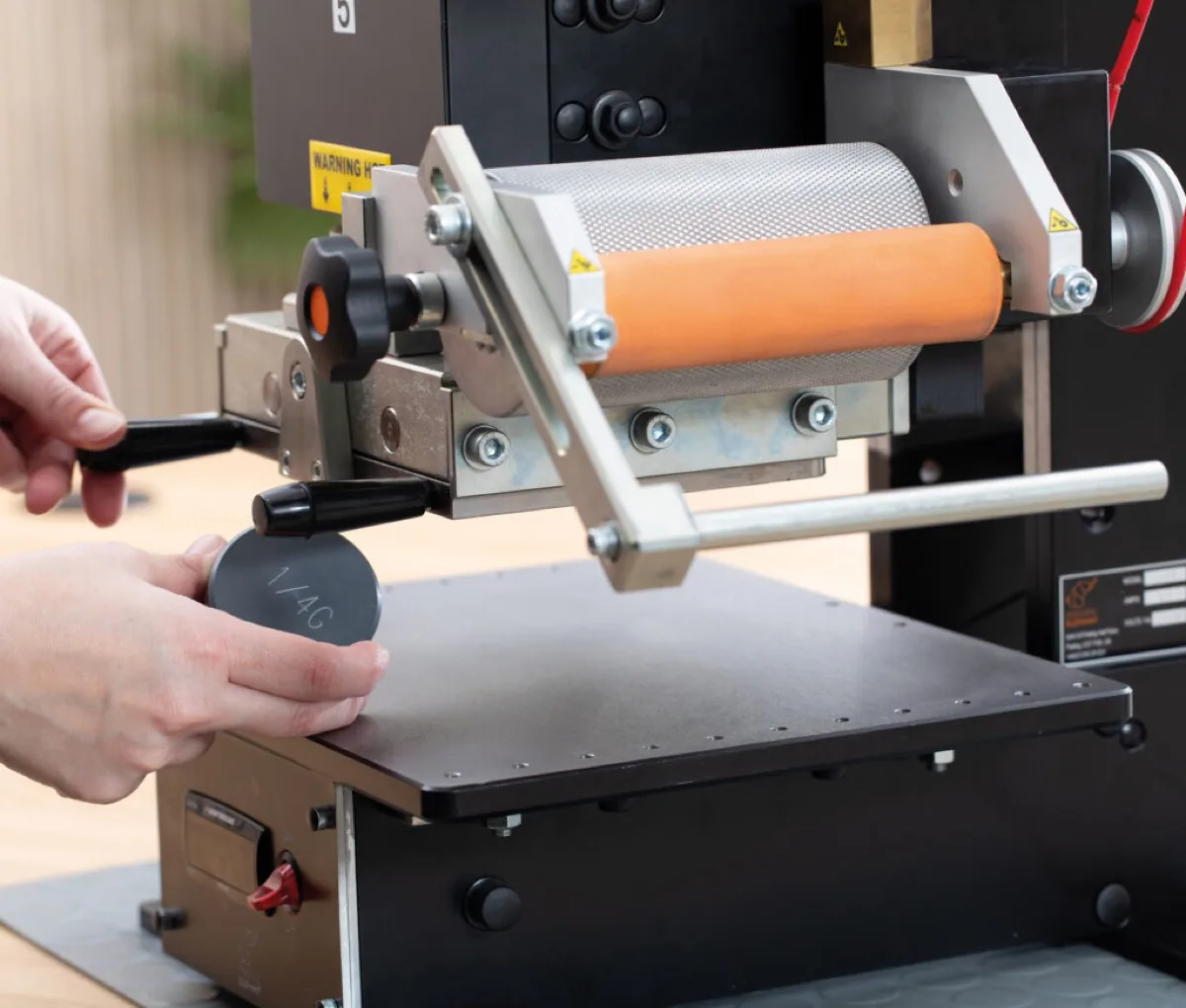

Sliding table
Load and unload away from the heated head, faster and safer.
The numbers
The KSF 5, by the numbers
Every machine is made to order in Essex. If a dimension doesn't quite fit your product, talk to us before you rule it out. Modifications are what we do.
- Print area
- 200 × 150 mm
- Table size
- 330 × 350 mm
- Pressure
- 3 tonnes
- Daylight opening
- Up to 240 mm
- Foil feed
- Automatic
- Machine footprint
- 550 × 580 × 710 mm high
- Press weight
- 120 kg
